Provide smart feeding solution globally!
FEEDER MANUFACTURER WITH 18 YEARS EXPERIENCE
- 2-4 Weeks Fast Delivery For Standard Feeders
- 7x24 After-sales Consultation And Maintenance
- Customized The Feeders According to Your Product Requirement
Contact: sales@hps-tech.com
Focuses on the intelligent and precise automation feeding devices with 18 years experience.
Type
- Feeders for SMT mounters.
- Feeders for label machines.
- Feeders for film/mylar applicators.
- Feeders for customized automation.
Dedicated engineers are assigned to assist you from the initial communication stage through order confirmation, production, processing, and after-sales.
Our Products

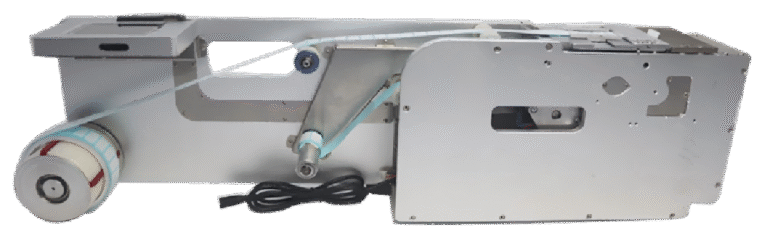

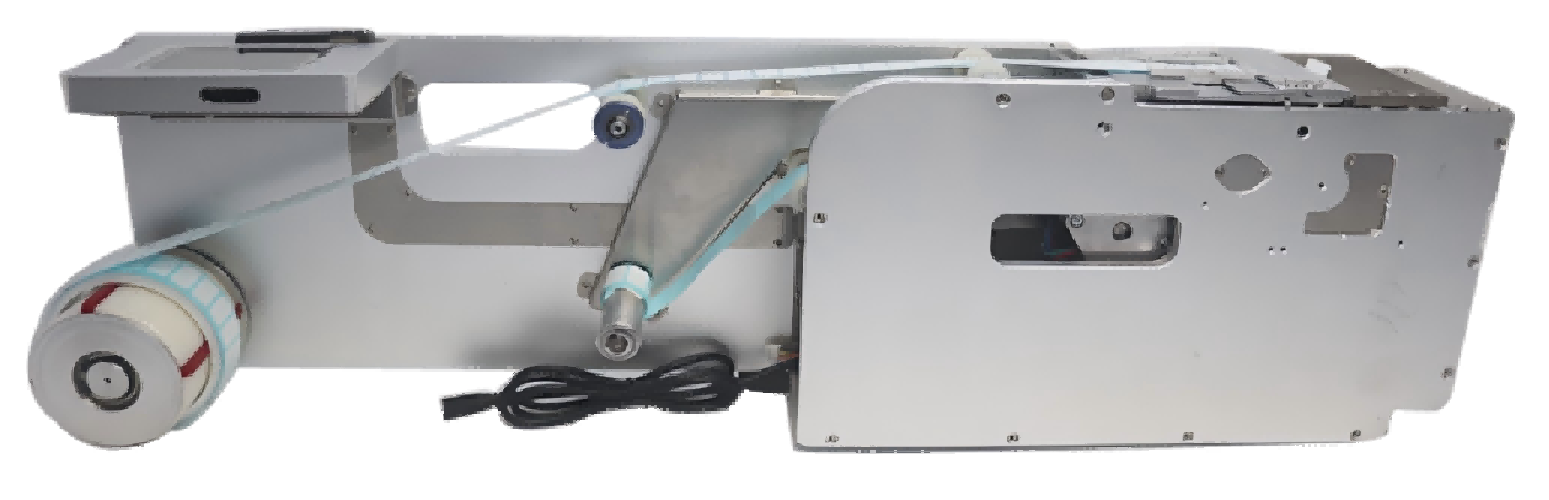

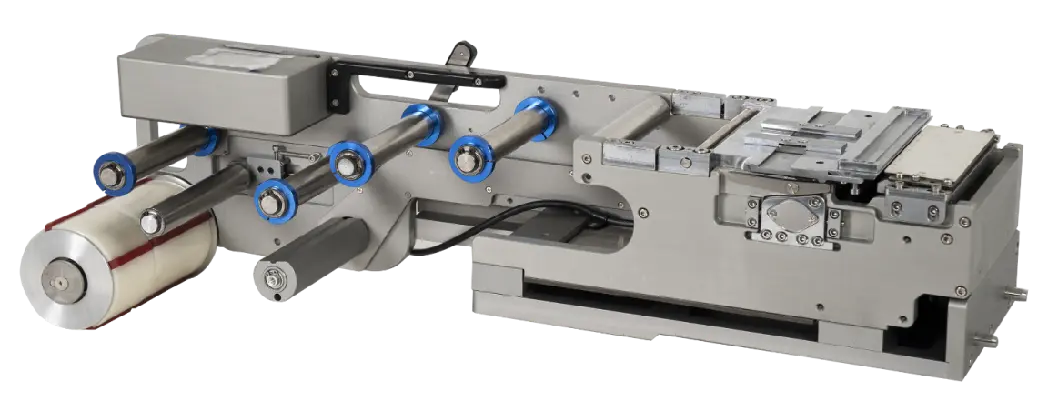

Compatible with X Series
- PWLF0800360
- Label Size(LxW): 2x2-40x60mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):645
- Width(mm): 95
- Height(mm): 190

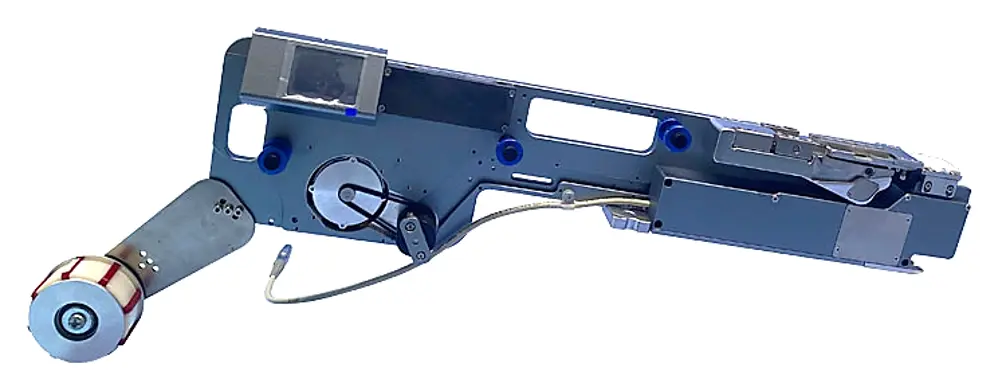

Compatible with D Series, compact model
- PWLF0800232
- Label Size(LxW): 2x2-40x20mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):635
- Width(mm): 45
- Height(mm): 180

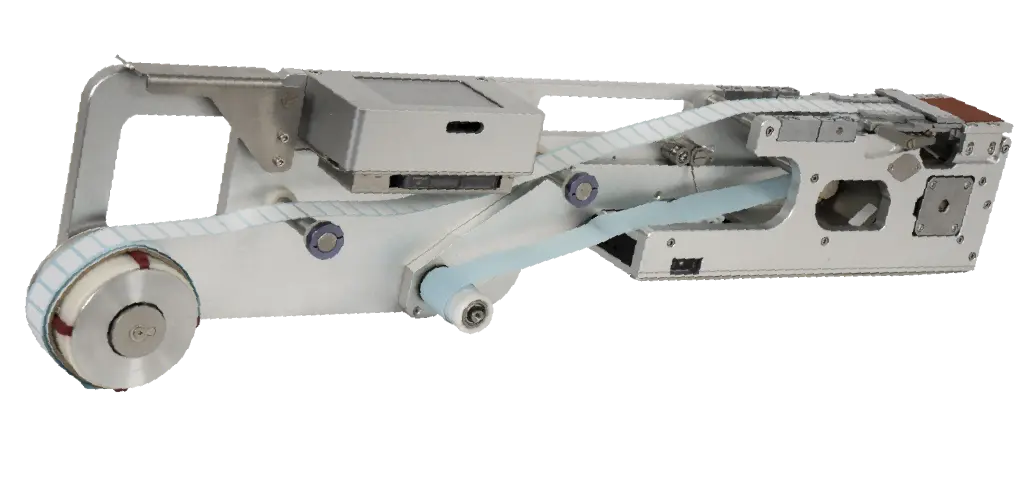

Compatible with NXT & AIMEX Series
- PWLF1400360
- Label Size(LxW): 2x2-40x60mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):660
- Width(mm): 90
- Height(mm): 170

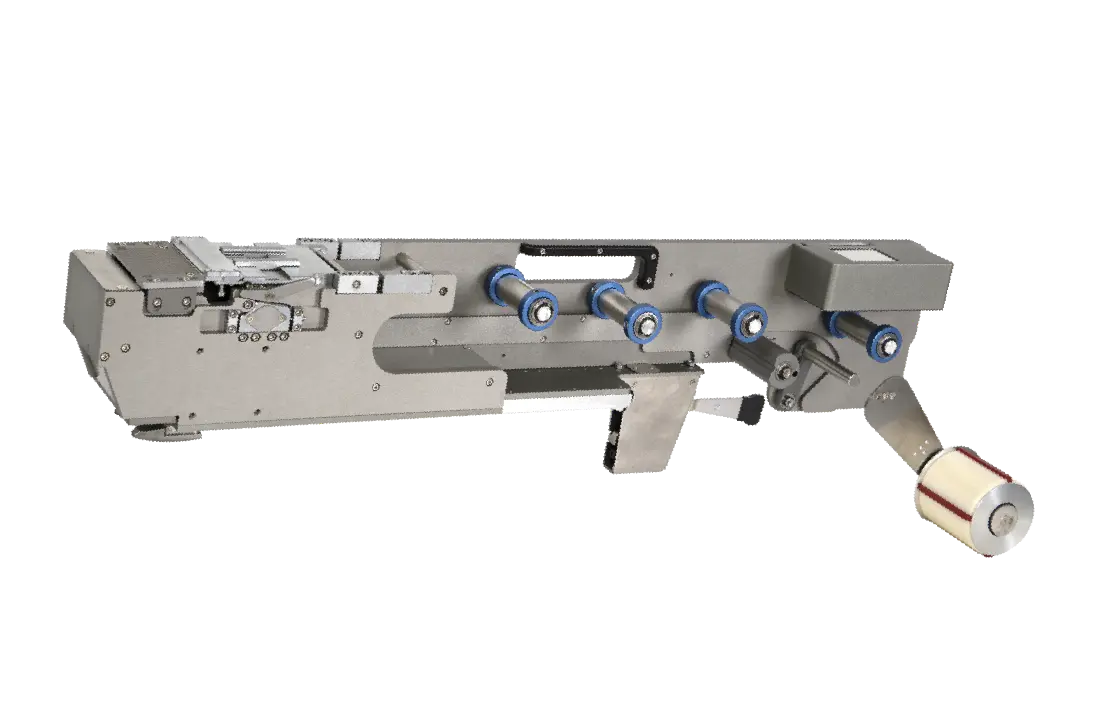

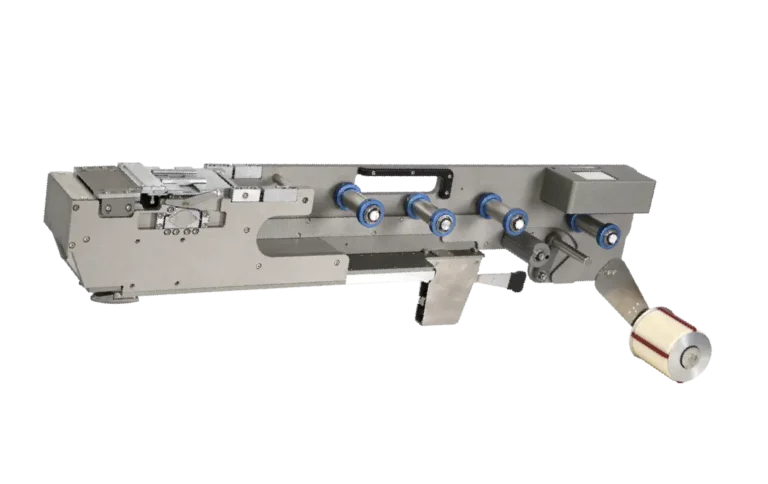

Compatible with NPM/CM Series
- PWLF1100160
- Label Size(LxW): 2x2-40x60mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):890
- Width(mm): 90
- Height(mm): 280

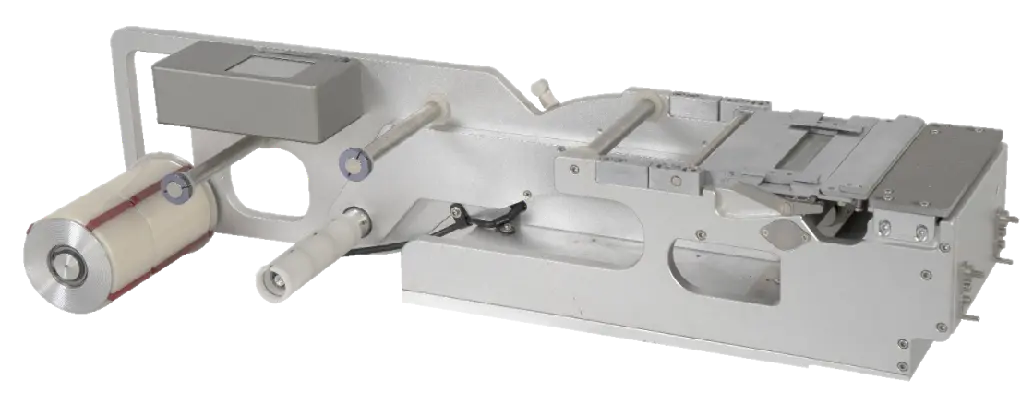

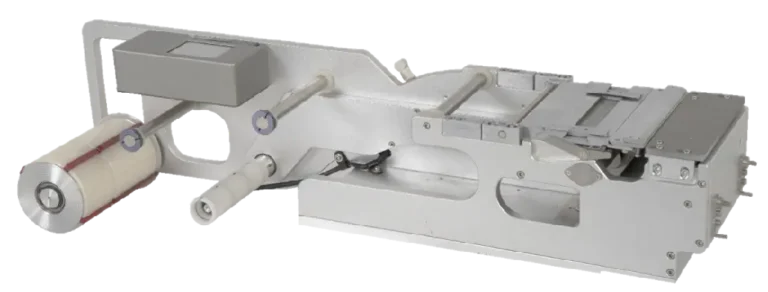

Compatible with KE/FX/JX/JM Series
- PWLF02001100
- Label Size(LxW): 2x2-40x100mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):640
- Width(mm): 135
- Height(mm): 160

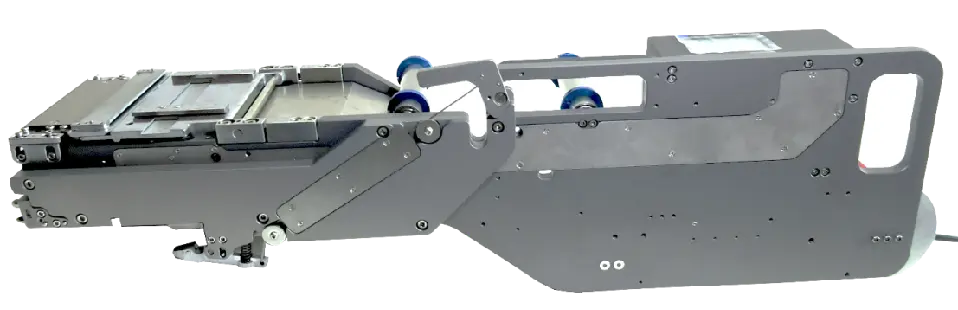

Compatible with YS Series
- PWLF09001100
- Label Size(LxW): 2x2-40x100mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):620
- Width(mm): 140
- Height(mm): 205

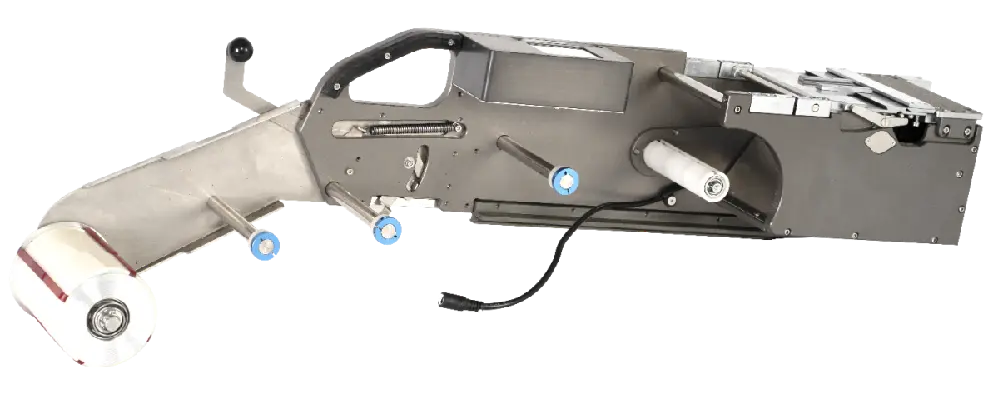

Compatible with SM/SME Series
- PWLF1600160
- Label Size(LxW): 2x2-40x60mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):670
- Width(mm): 90
- Height(mm): 265

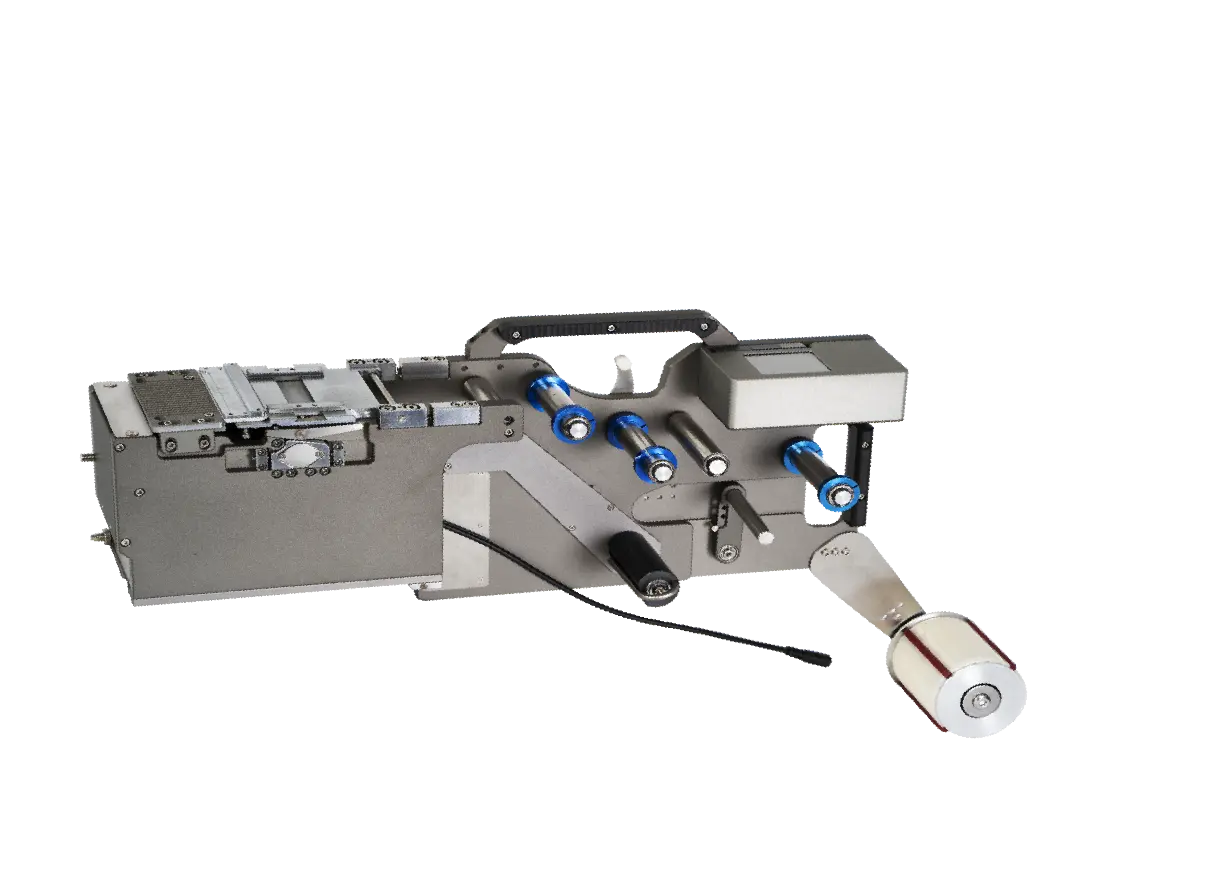

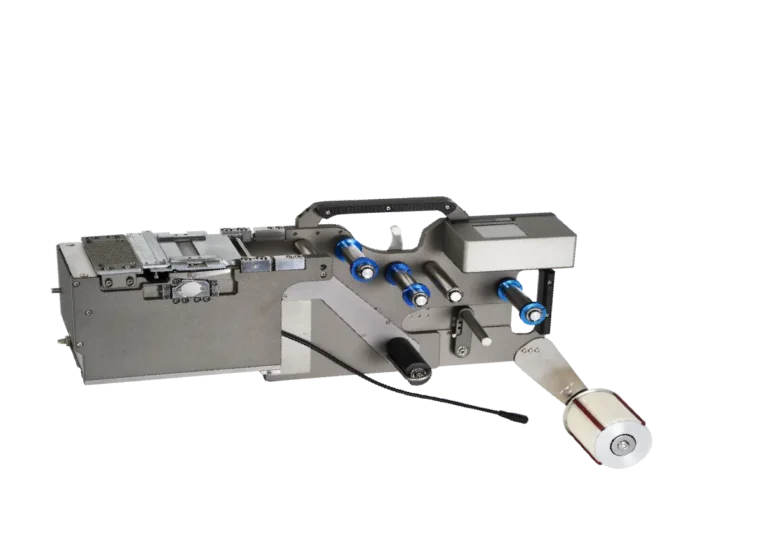

Compatible with GSM/GC/GX Series
- PWLF07001100
- Label Size(LxW): 2x2-40x100mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):785
- Width(mm): 230
- Height(mm): 155
Compatible with MX Series
- PWLF10001100
- Label Size(LxW): 2x2-40x100mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):785
- Width(mm): 230
- Height(mm): 155

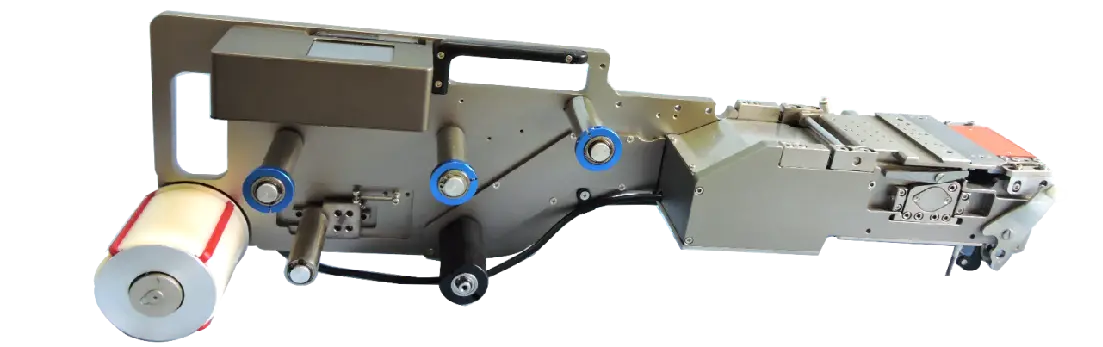

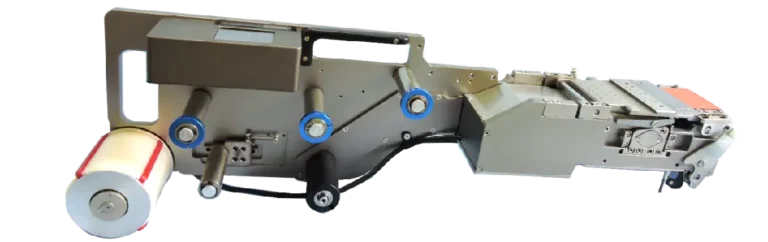

Compatible with YV Series
- PWLF0600160
- Label Size(LxW): 2x2-40x60mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):620
- Width(mm): 90
- Height(mm): 205
Suitable for applications of robot and automatic labeling machines.
- PWLFAL60
- Label Size(LxW): 2x2-40x60mm
- Positioning Acurracy: +/-0.2mm
- Angel Acurracy: +/-0.5°
- Driving Mode: Servo Motor
- Length(mm):515
- Width(mm): 100
- Height(mm): 400

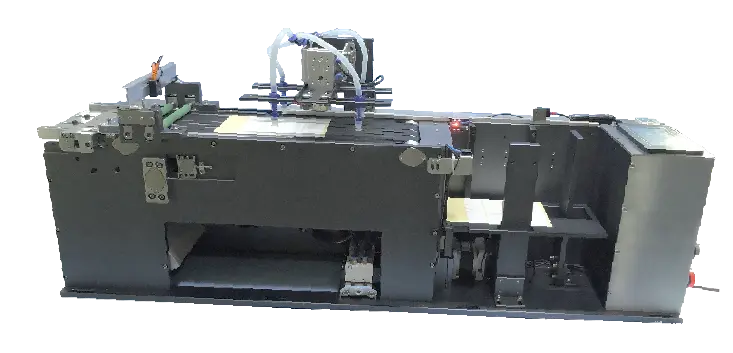

Suitable for applications of robot and automatic labeling machines, ideal for sheet packaging material.
- Nozzles pick up the sheet material from the magazine.
- Place the sheet material at the dedicated place. Clamp the front blank of the sheet, and the pressure cylinder holds the rear blank.
- Nozzles retract to the pick up point.
- Advance the sheet to feed.
- Feeding complete, then nozzle pick up the material.

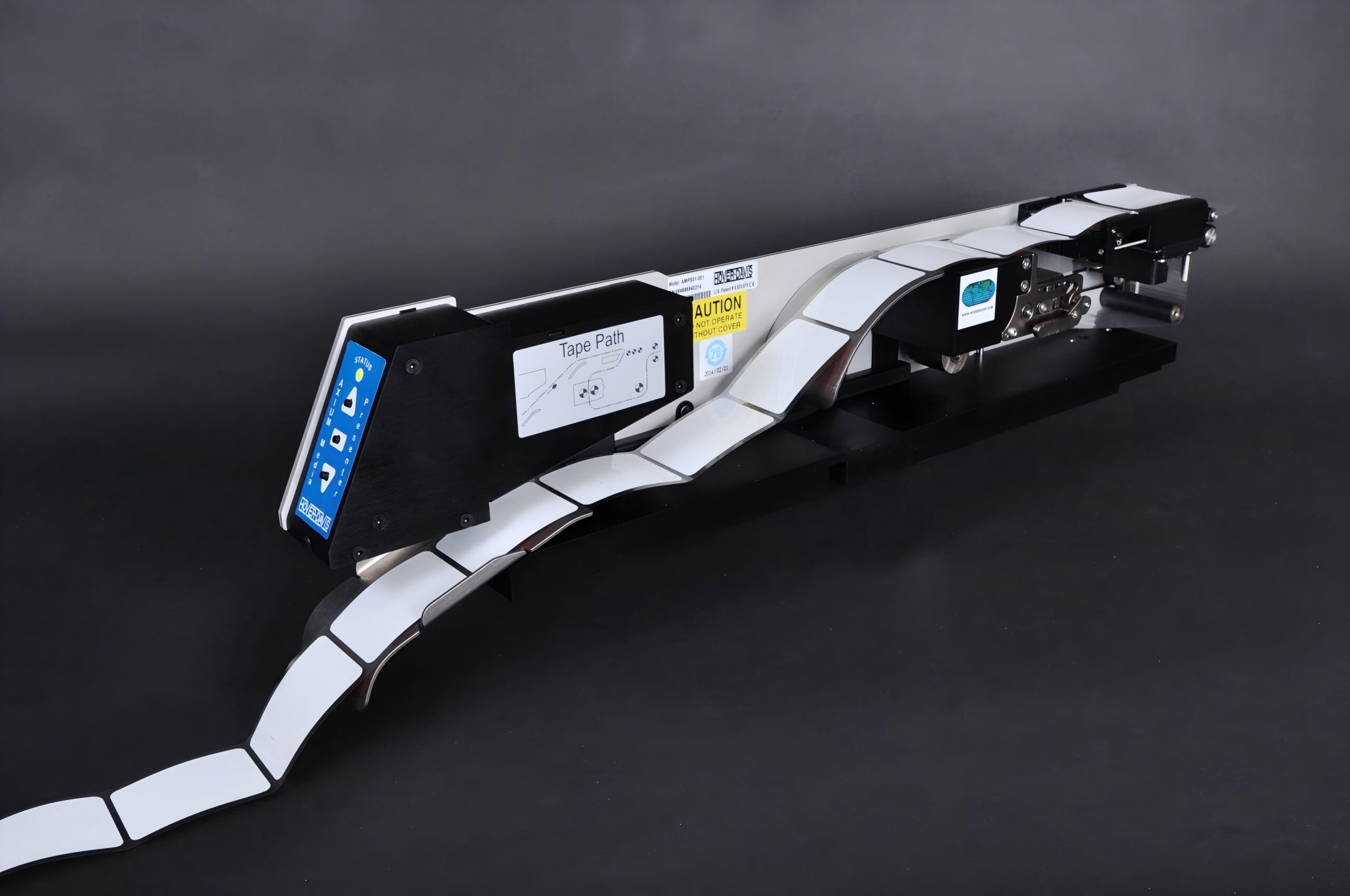

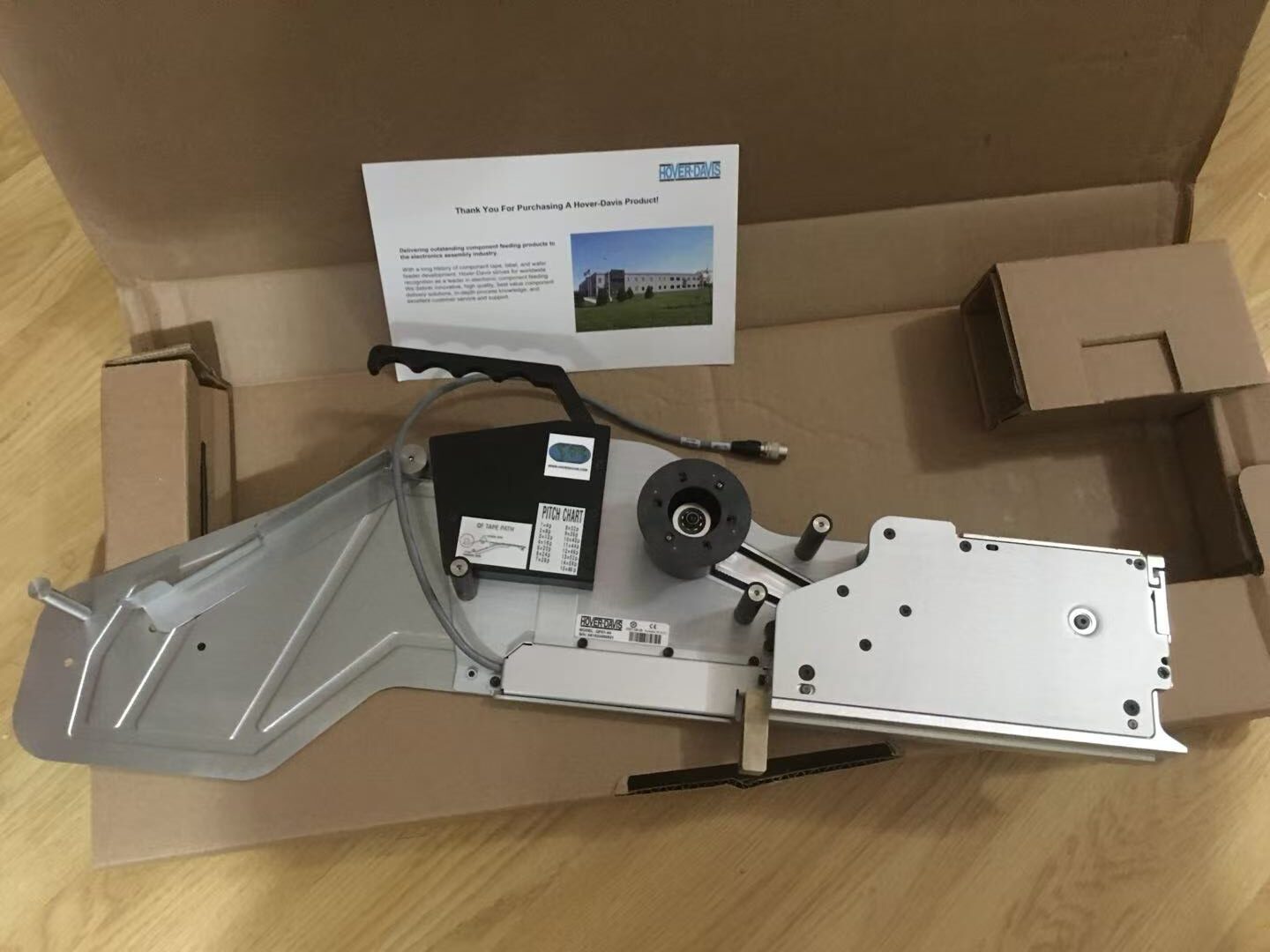

Hover-Davis Feeder
Compatible with D Series
- AXIUM Series Media Presenters
- Automatically feeds and peels media from liner and presents for pickup
- Generic Media Platform is user configurable for most applications
- Standard system presents 3mm x 3mm up to 42mm x 50mm media
- Custom Module configurations available for < 3mm applications
Work with ASM D1 P&P Machine
Application for Mylar Material

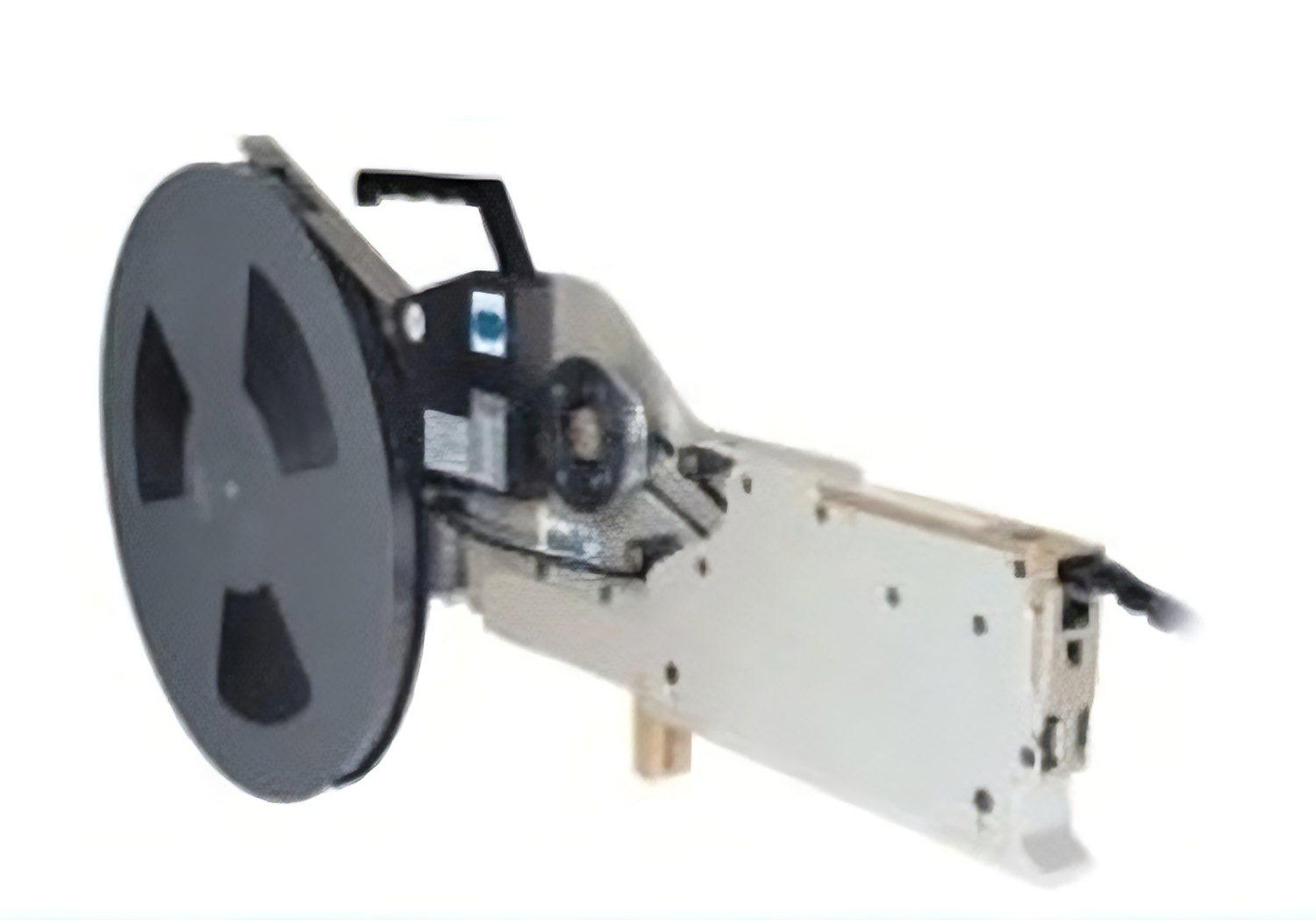

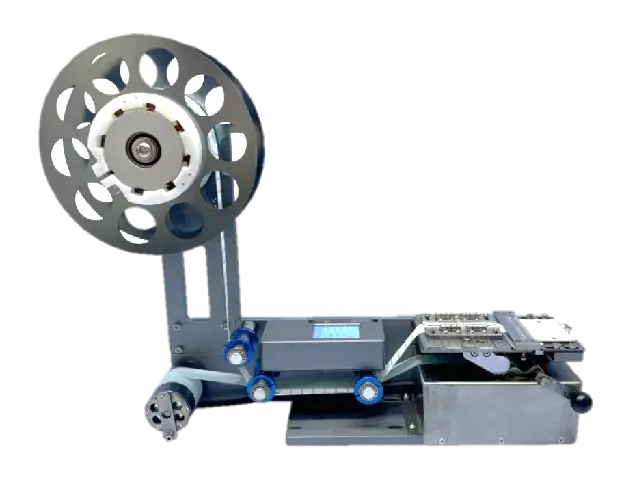

For 8mm up to 120mm paper & embossed pocket tape and simple signal control for easy integration with custom automation cells.
- 8mm to up 120mm, supports paper or embossed ANSI/EIA 481 pocket tape.
- Integrated Reel Holder options for up to 27” reels
- Simple signal control for Programmable Logic Controller (PLC) integration.
- Deep pocket, large tape window options for odd-form components.
- High toque motors for heavy, large reel applications
- Optional MPFP Robotic Interface Module with feeder slot plate and “Ready” signal cable output for simple drop-in integration.

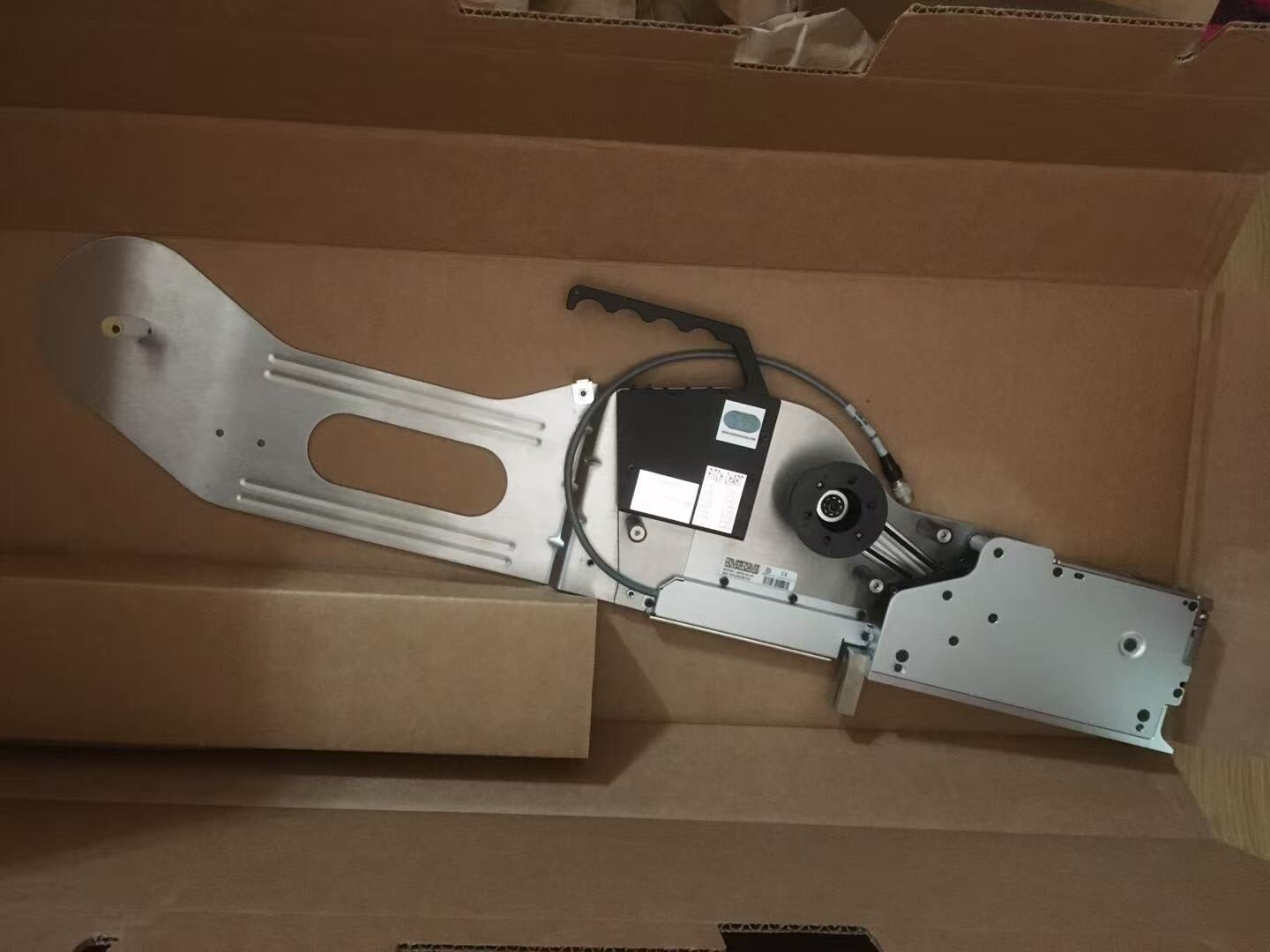

QF10-8P

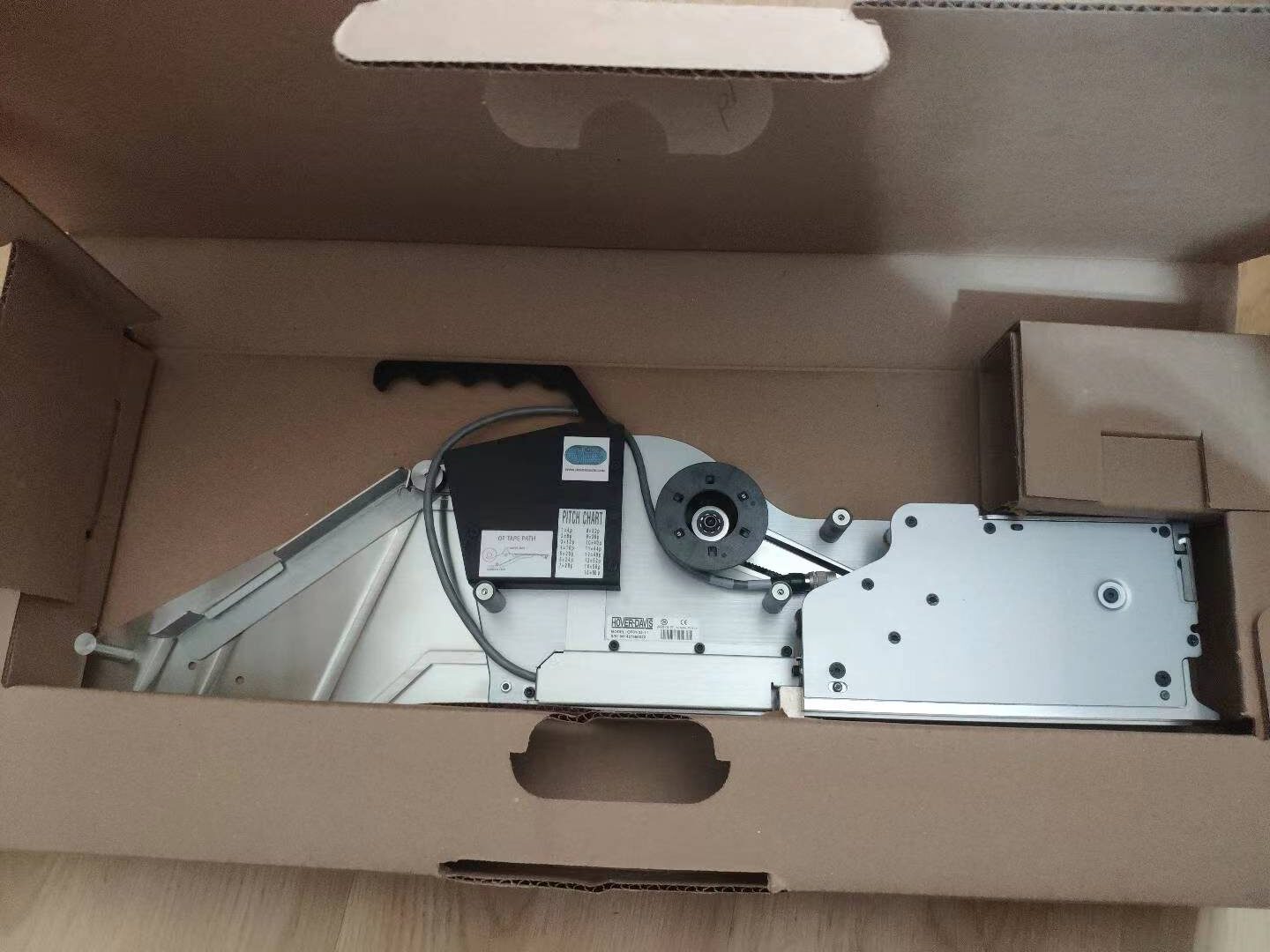

QF01-32
QF01-44

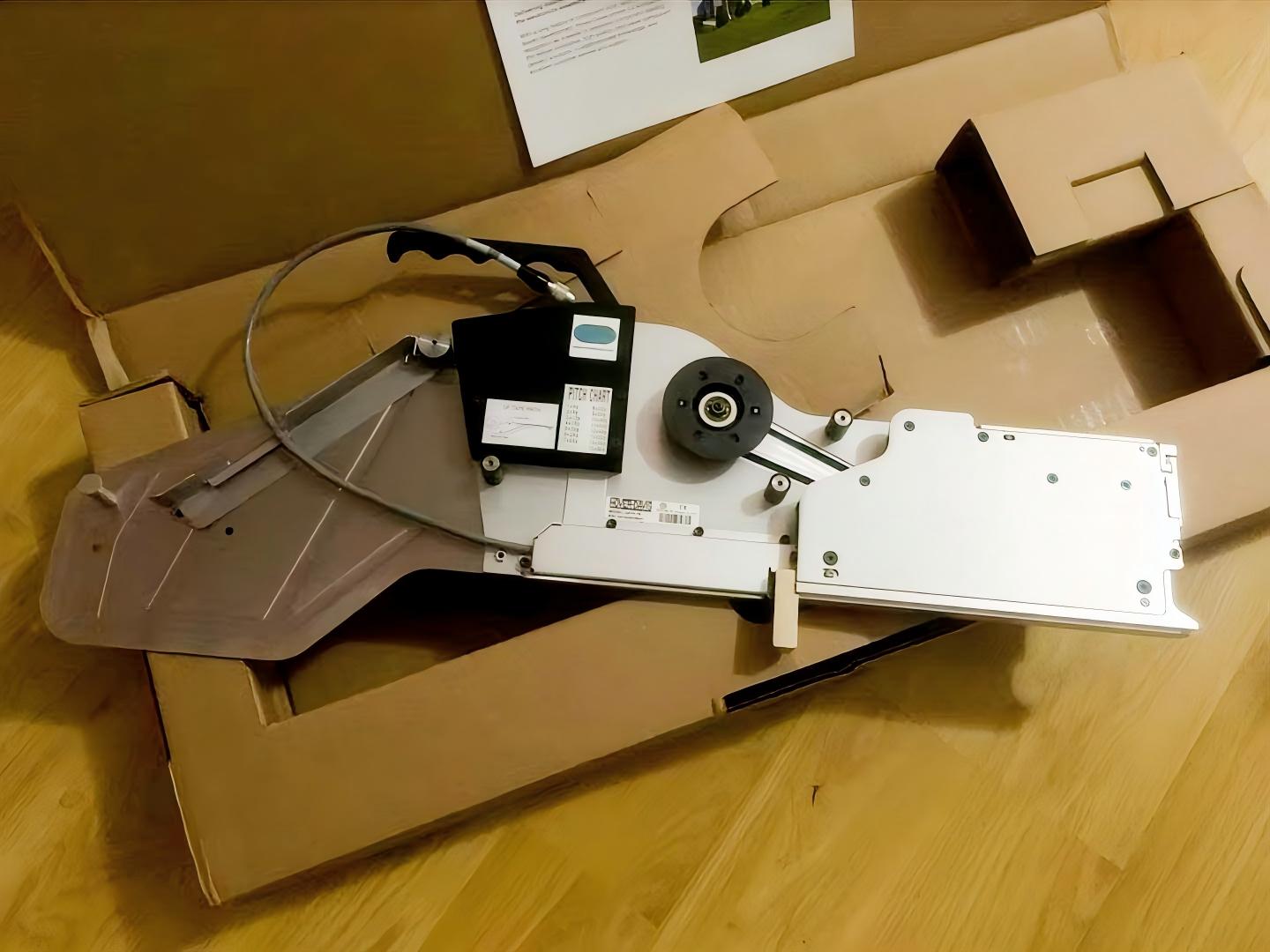

QF01-16

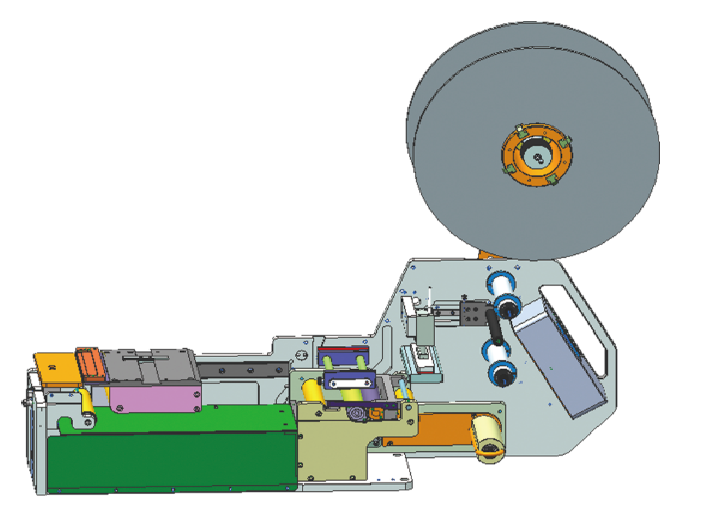

Fully Customizable
- Dimension
- Peel off mode
- Communication mode
- Adapt to different layout of materials
- Multifunctional robotic interface module with feeder slot plate
Advantage

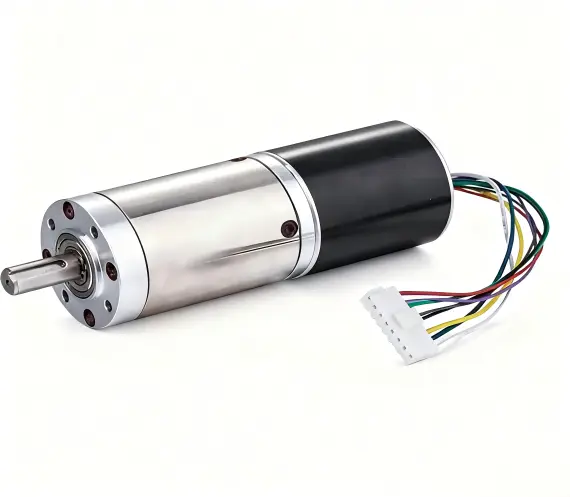

Accurate, stable and reliable electric motor drive systems.
Simple, electronic pick point adjustment.

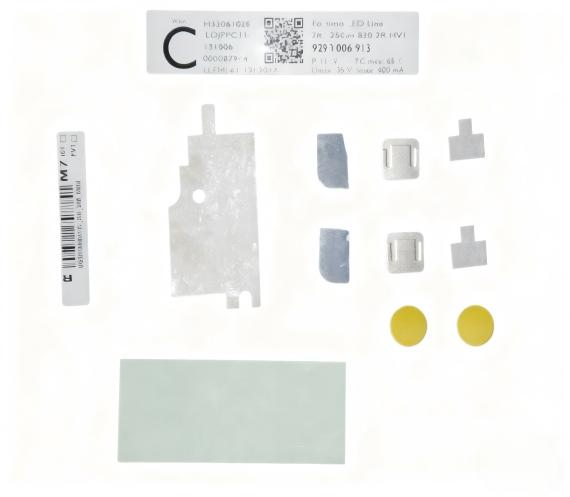

Wildly used, labels, insulators, masks, shields, mylar, antennas, etc.

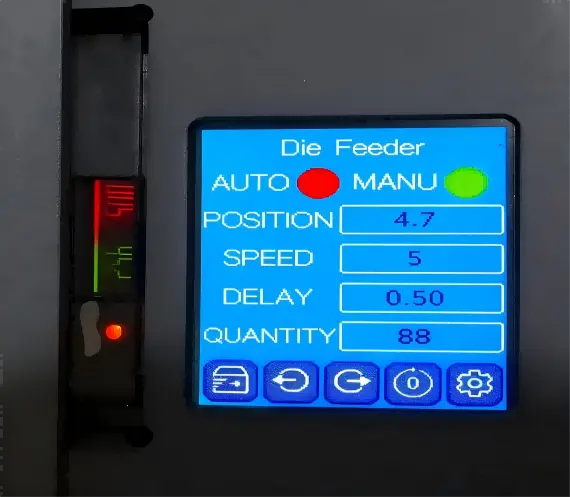

Feeder status display and user control panel.
Modular, user serviceable design with complete spare parts availability.
Optional Robotic Interface Module with feeder slot plate and Serial, signal cable output (PLC) options for expanded integration capabilities.
Application
Label Feeder with Yamaha Pick & Place Machine

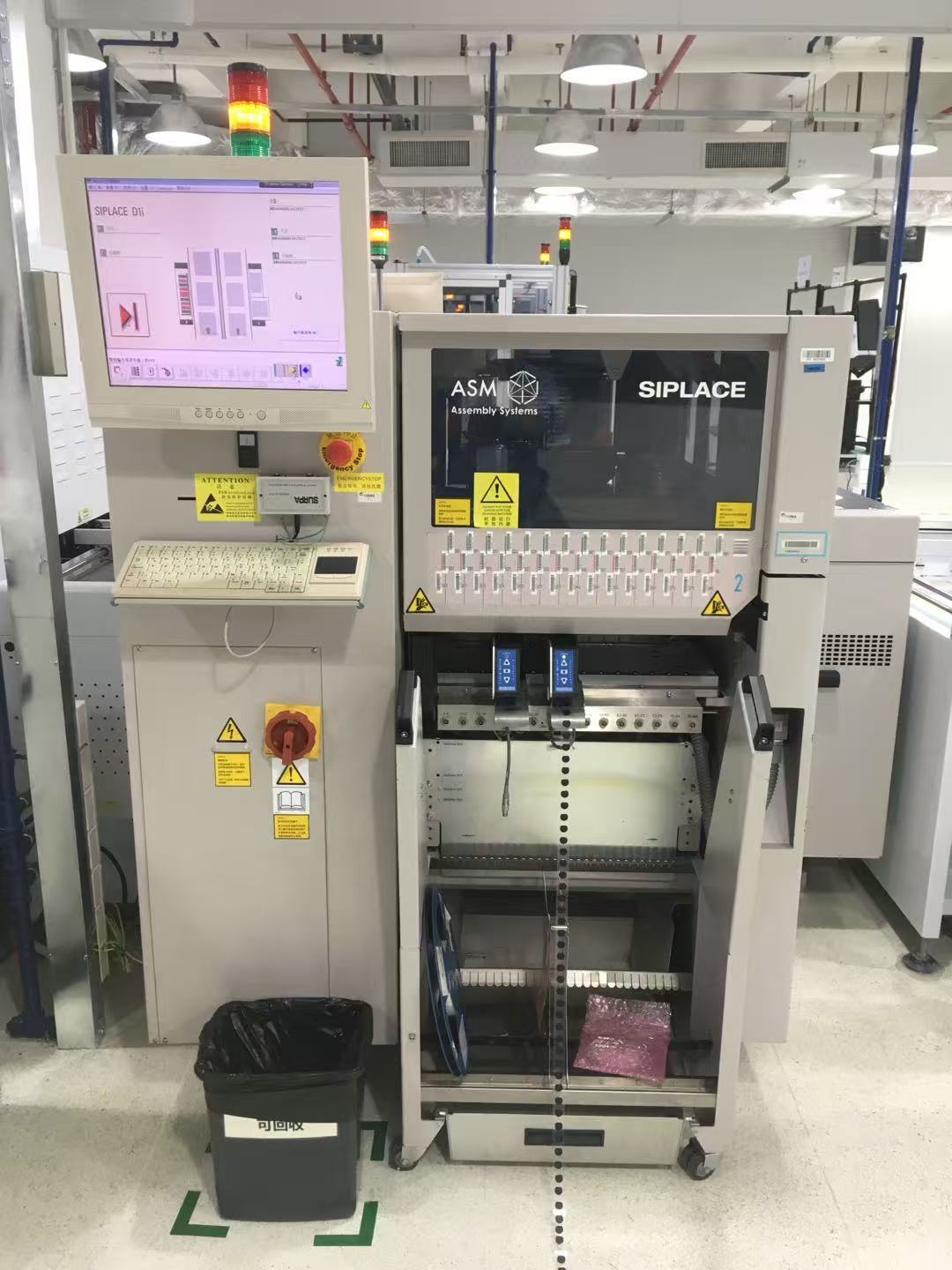

Label Feeder with ASM D1 Pick & Place Machine
Label Feeder with ASM TX Pick & Place Machine
Label Feeder Designed for Sheet Packaging Material
Label Feeder with Fuji NXT Pick & Place Machine
Label Feeder with Automatic Labeling Machine

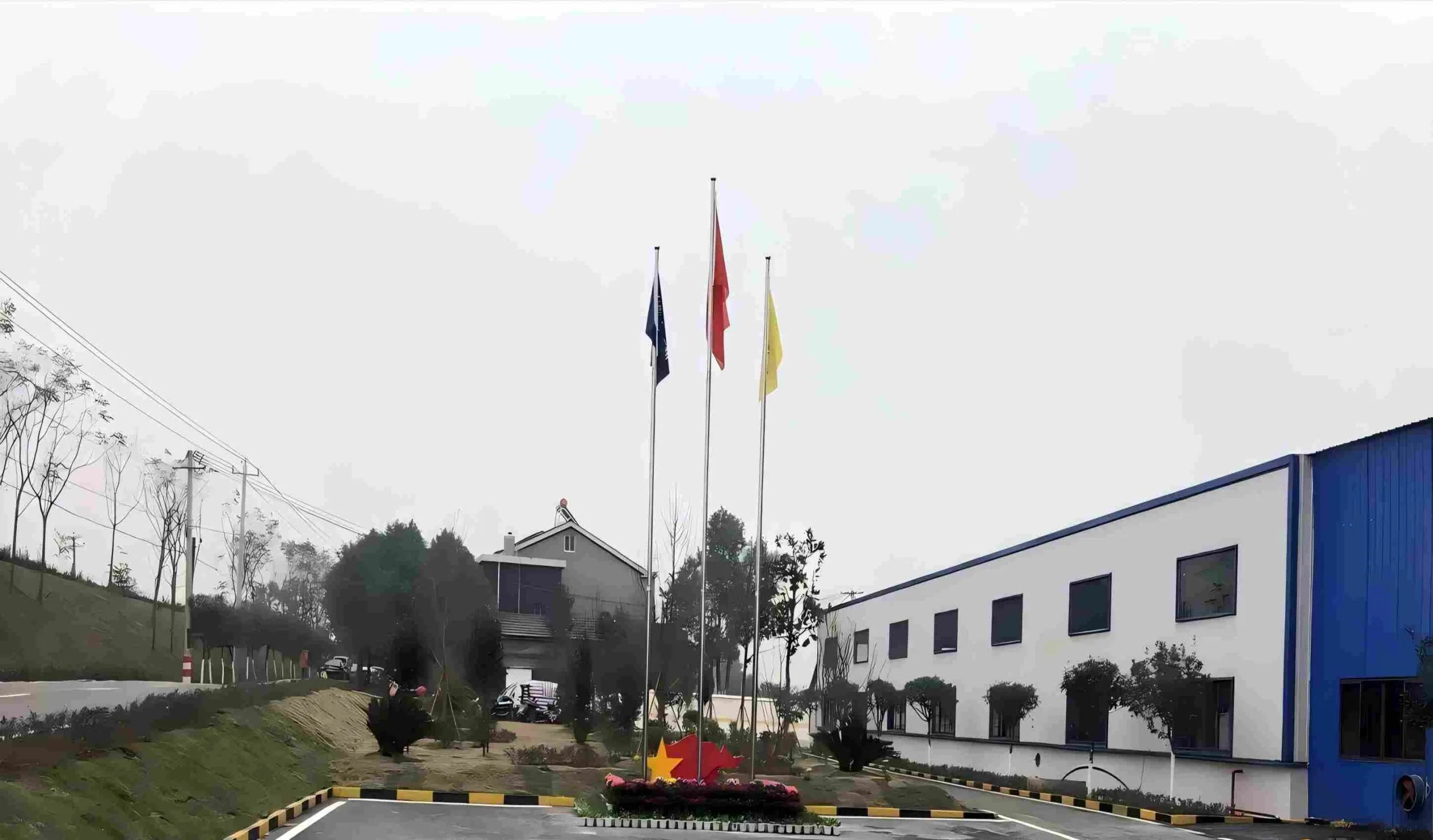

About HPS Technology
HPS is a S&T corporation who provides automation equipment and technical services, located in Hong Kong, Shenzhen, Suzhou and Malaysia, serve the global market.
Mission
To provide high quality, high performance and cost effective solution in various industry.
Vision
To develop and provide all kinds of equipment for automatic labeling, packing, assembling and inspection for industrial application, as well as integration projects along with the relevant equipment, and total solution for production process optimization.
Contact : sales@hps-tech.com

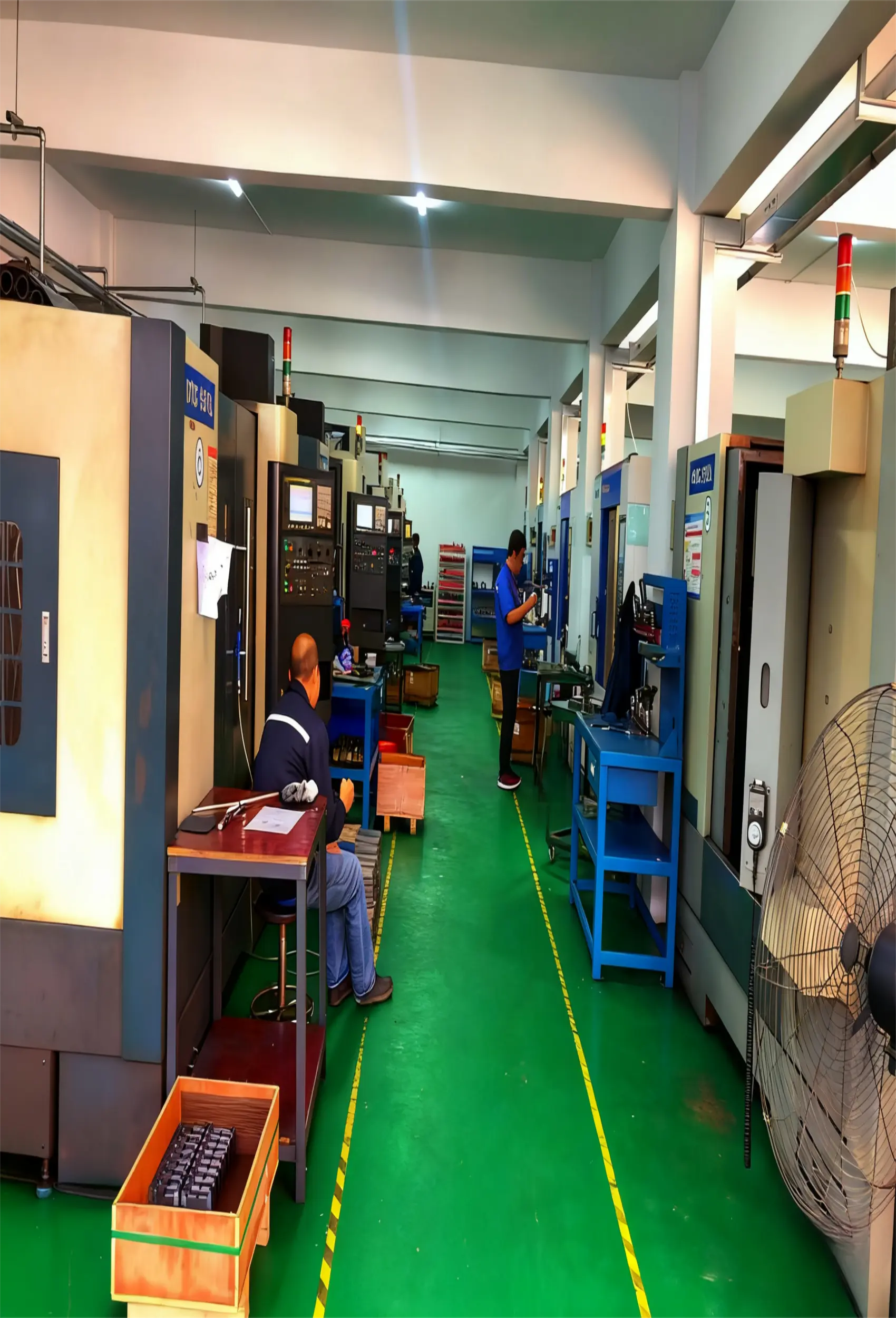

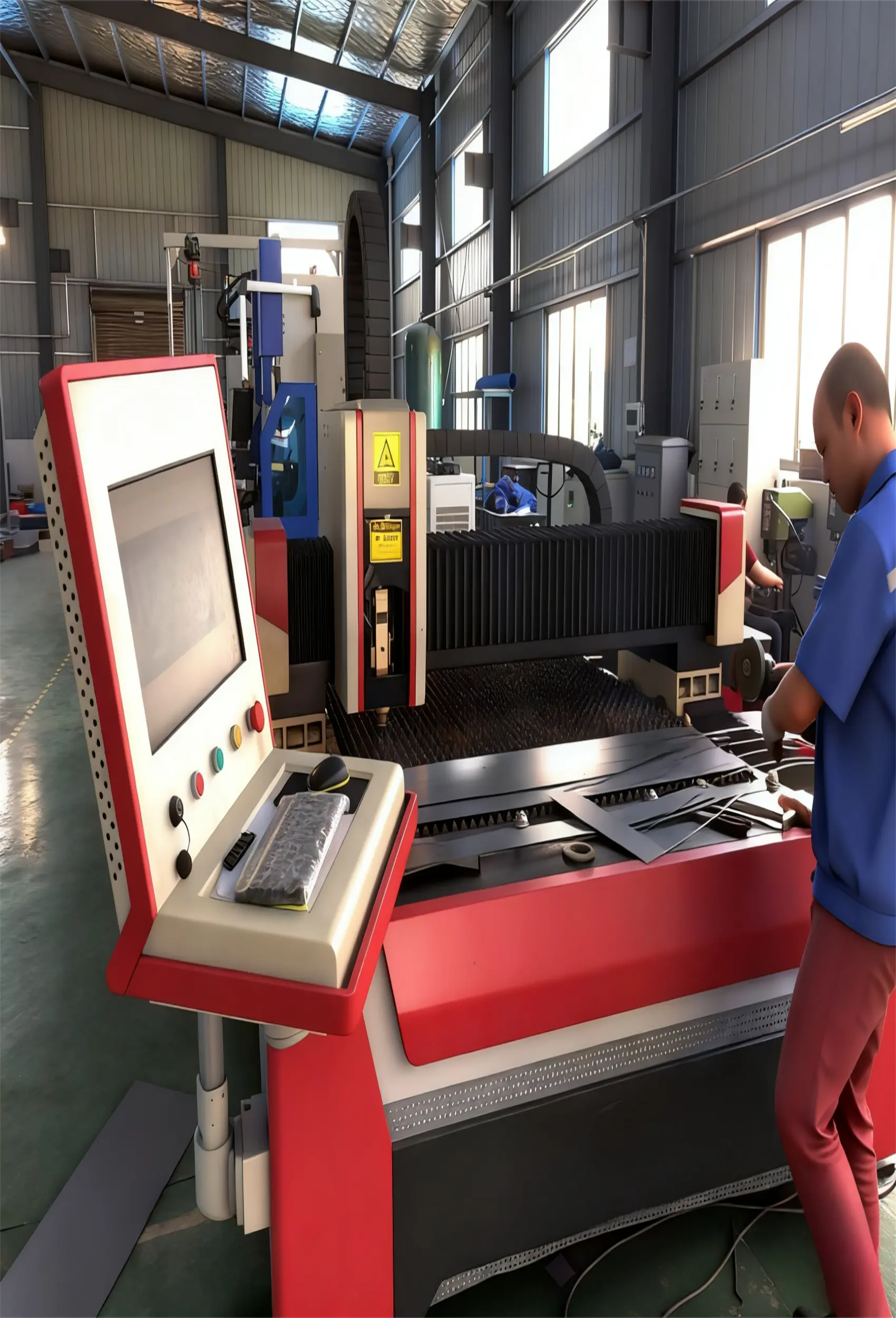

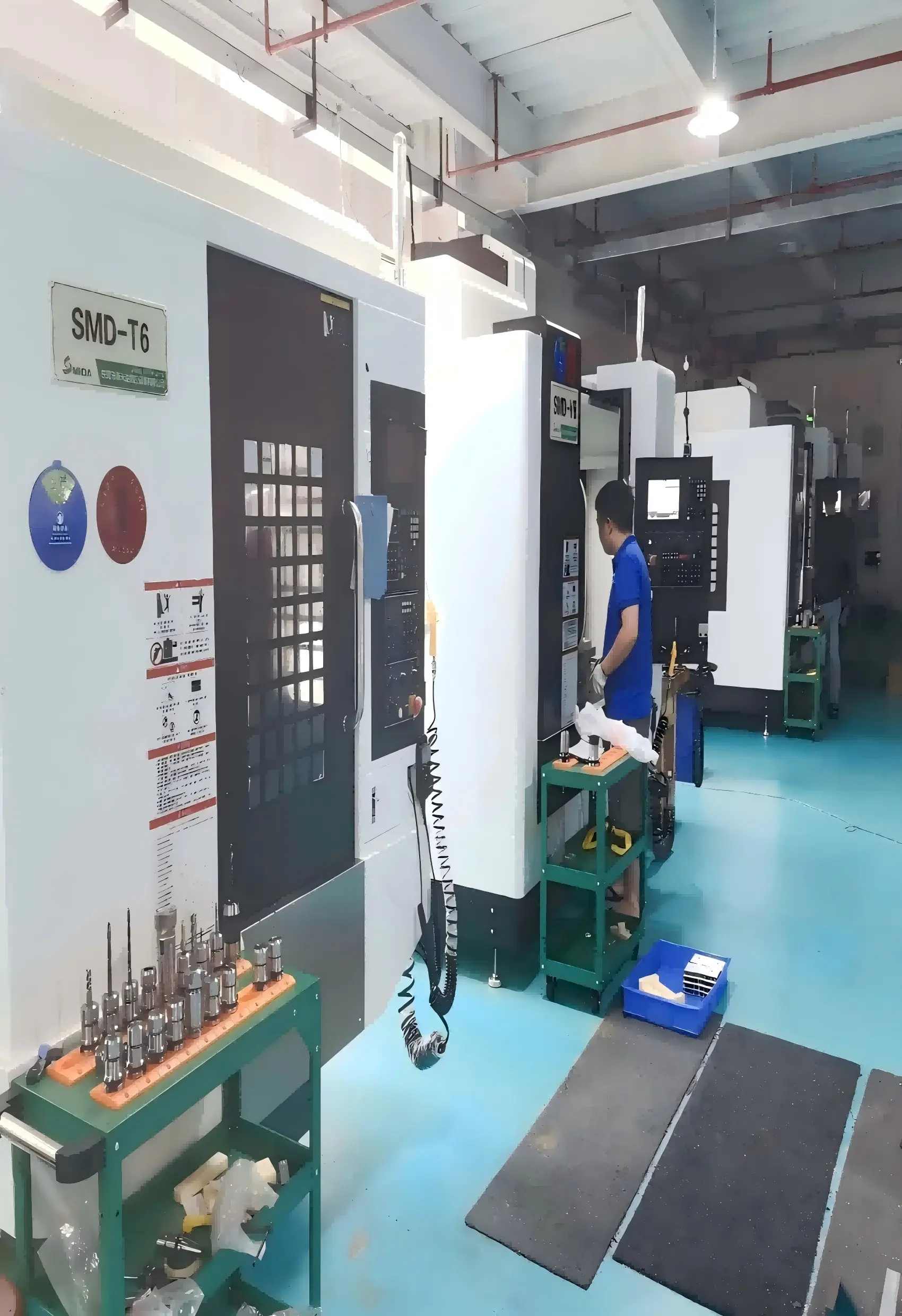

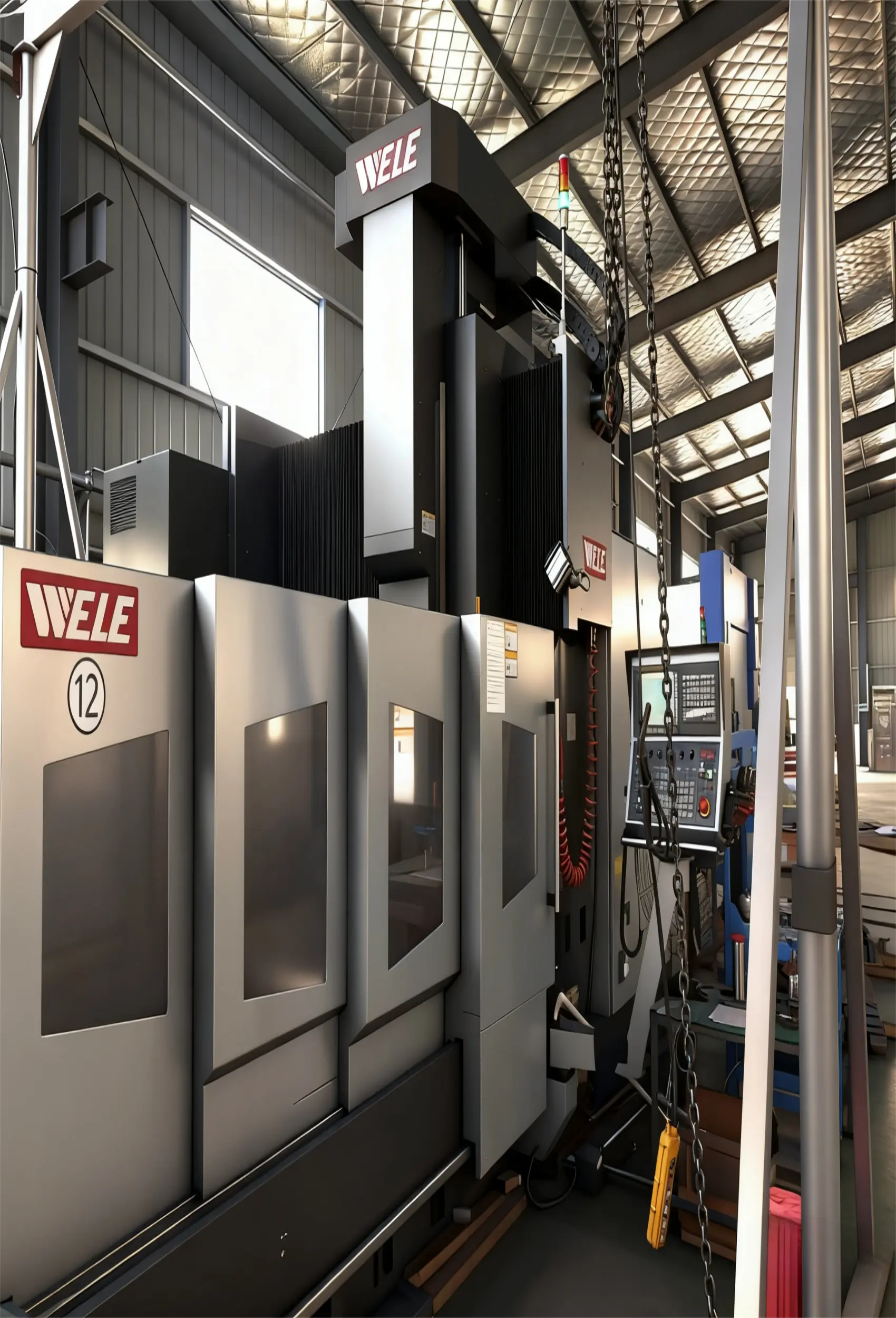

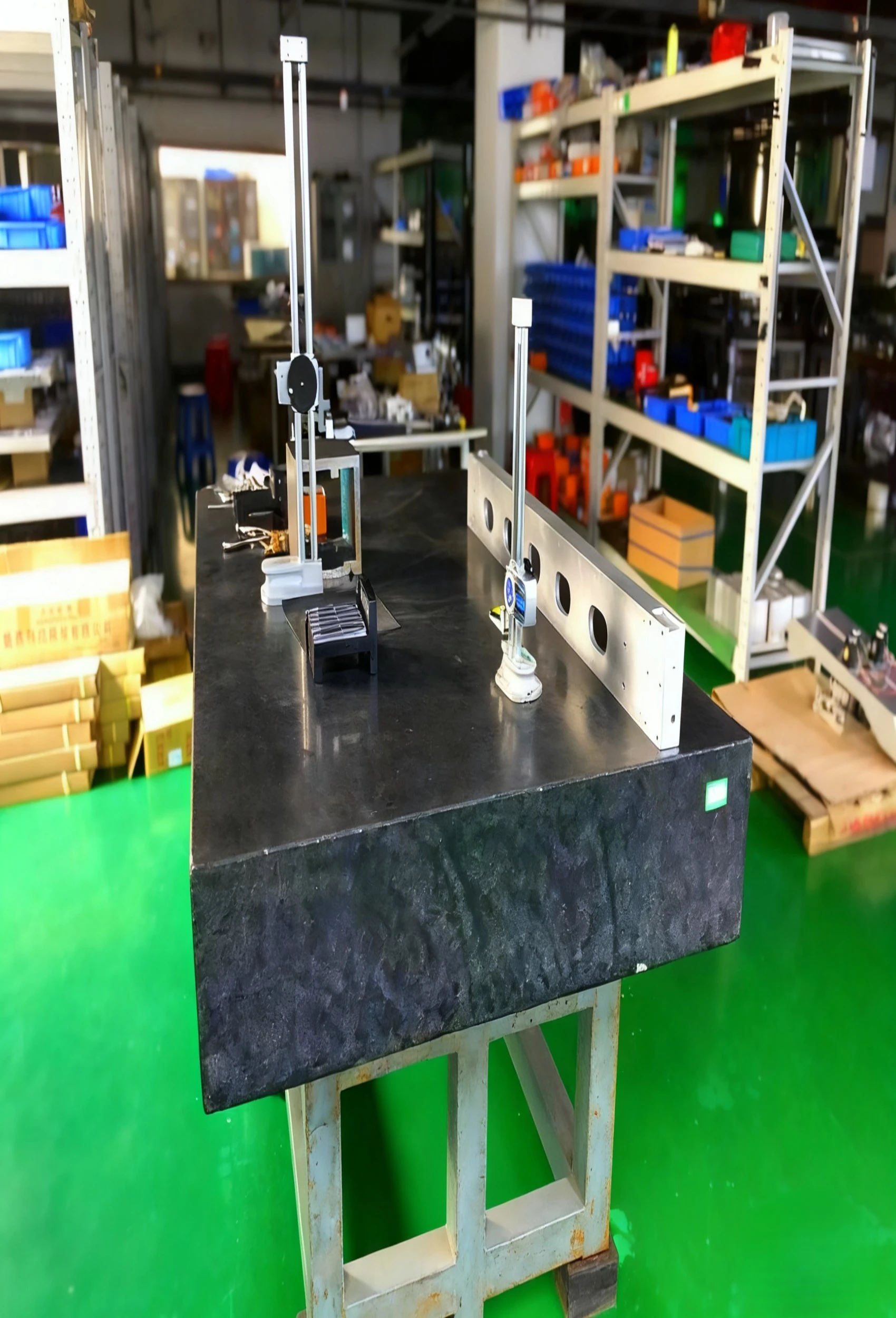

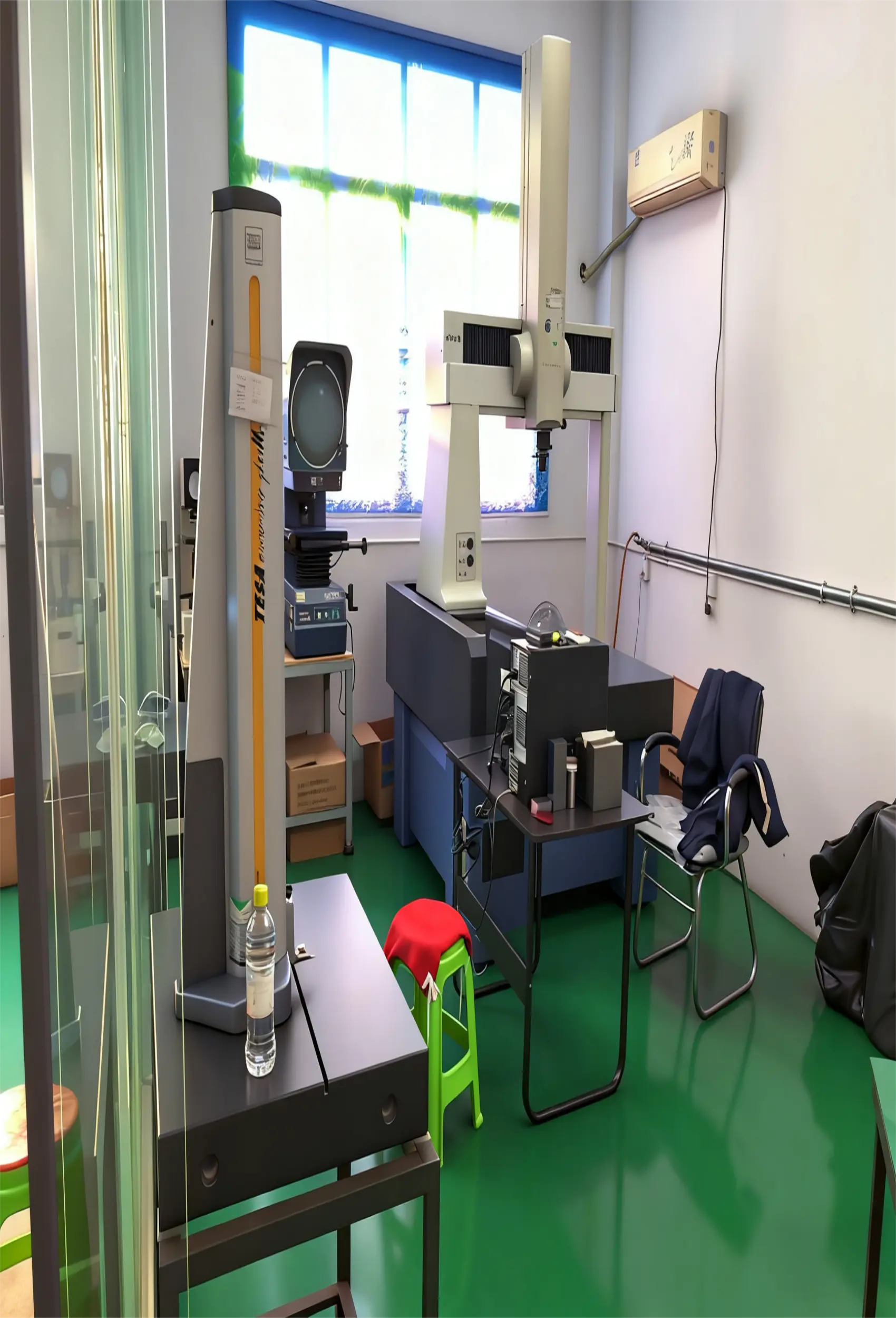

Our production Facility
Want to find an efficient and reliable factory ?
- Customized system planning and design
- On-time delivery and global logistics support
- 24/7 after-sales consultation and maintenance
- Installation guidance and on site support
Contact: sales@hps-tech.com
Send Request Now !
Please send us your request with your samples, drawing, demand etc., let’s start our cooperation.
